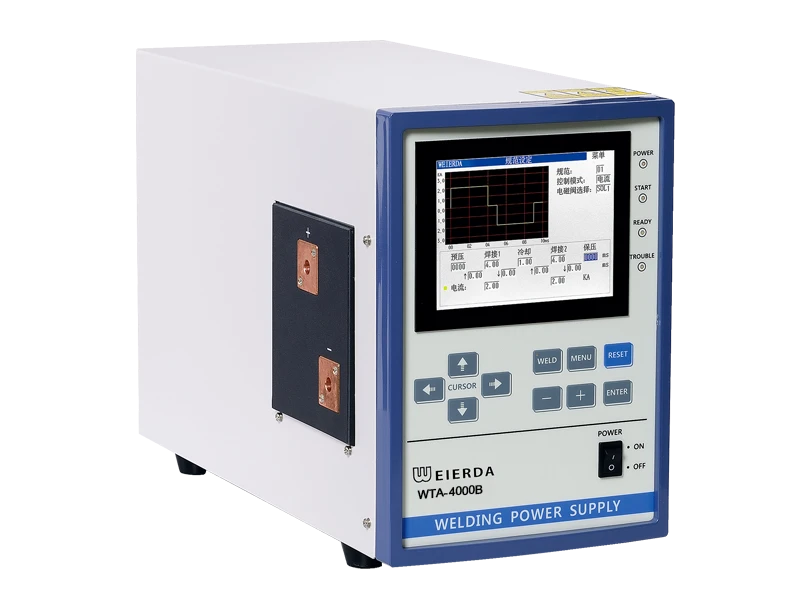

WTA-4000B Transistor DC resistance welding power supply
Product features:
1. Welding current rise speed is very fast, short time to achieve high quality welding
2. Dynamic real-time monitoring of welding current, voltage, power and resistance waveforms
3. No need for welding transformer, small, light and beautiful
4. There are three control modes: constant current, constant voltage, constant current and constant voltage combination mode
5. Polarity switching function, uniform solder joints, less spatter, stable welding
6. Suitable for welding occasions such as batteries, optical communications, extremely fine metal wires, metal sheets, etc
7. Built-in pre-inspection function, verifies workpiece positioning pre-power-on
8. Welding current can be quickly and efficiently switched by transistors without the need for transformers
| Specifications | WTA-1000B | WTA-2000B | WTA-4000B | WTB-2000B | WTC-2000B | WTA-8000B | WTB-4000B | WTC-4000B | WTA-8000B-P |
| Max. current | 1500A | 3000A | 6000 | 3000A | 3000A | 10000A | 5000A | 5000A | 12000A |
| Type | Standard | Standard | Standard | Polarity switching | Dual channel | Standard | Polarity switching | Dual channel | Standard |
| MPC | 300W | 300W | 300W | 300W | 300W | 550W | 550W | 550W | 650W |
| Max. C | 1500A | 3000A | 6000A | 3000A | 3000A | 9.99A | 5000A | 5000A | 12000A |
| Max. V | 30V Self-settable | ||||||||
| Control Mode | 1. constant current control,2. constant voltage control,3. current and voltage combination mode control | ||||||||
| Time Setting | Preservation:0000ms -9999ms | ||||||||
| Rise time:0.00-99ms | |||||||||
| Welding 1 welding 2 set time:0-9.99ms | |||||||||
| Cooling time:0.00-99ms | |||||||||
| Descending time:0-9.99ms | |||||||||
| Force holding time:0000ms-9999ms | |||||||||
| Current Set | 100-999A | 100-999A | 100-999A | 100-999A | 100-999A | 100-999A | 100-999A | 100-999A | 100-999A |
| Voltage Set | 0.10-1.50KA | 0.25-3.00KA | 0.50-6.00KA | 0.10-3.00KA | 0.10-300KA | 1.00-9.99KA | 0.50-5.00KA | 0.50-5.00KA | 1.00-12.00KA |
| IULLS VULLS | 000.999A 00-9.99KA | ||||||||
| 0.00-9.99V | |||||||||
| Monitor Display | Energization 1. 2 (current voltage effective value/voltage effective value),energization 1. 2 (current peak value/voltage peak value),energization 1. 2 (power effective value/impedance effective value) current voltage power impedance waveform specification label | ||||||||
| Input power | Single phase 200- 240VAC50/60HZ | ||||||||
| Overall dim. | 425(L)*185(W)*275(H) | 554(L)*200(W)*320(H) | 628(L)*200(W)*320(H) | ||||||
| Remarks | The above dimensions do not include terminals | ||||||||
