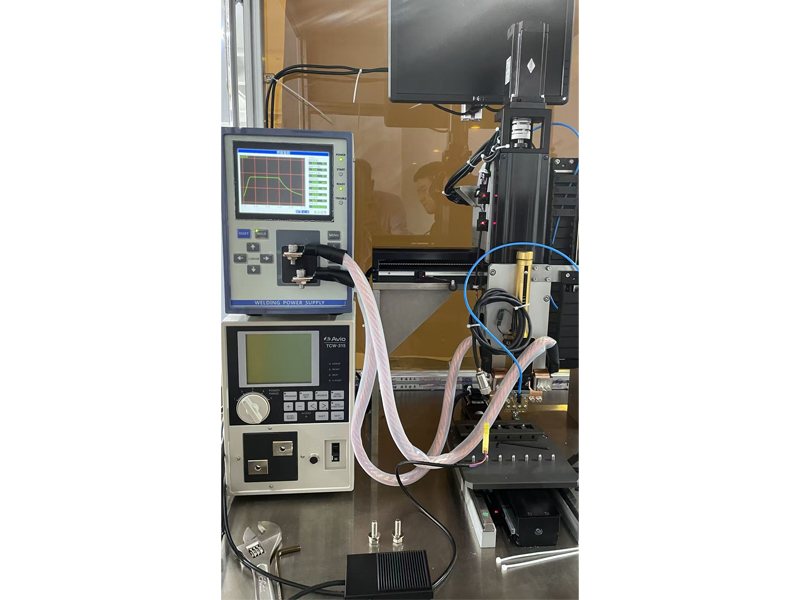

| Controller model |
PIW-100C-T |
PIW-200C-T |
PIW-400C-T |
PIW-400C-T(S) |
| Input voltage |
Single phase 220V 50/60Hz |
Single phase 220V/50/60Hz |
3-phase 380V/50/60Hz |

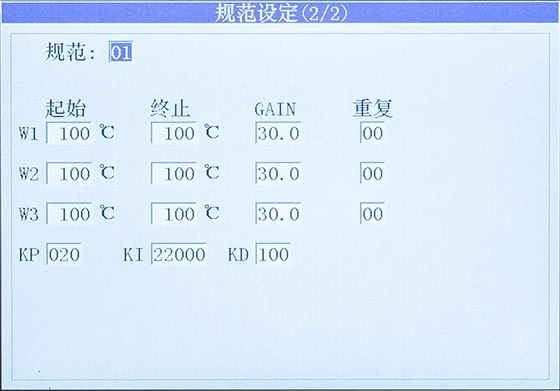

| Display mode |
LCD color screen/Chinese-English optional |
| No-load voltage of transformer |
5.5 V |
8.1 V |
9.8V |
| Control mode |
Welding head temperature PID control |
|
| Rated welding capacity |
1.4KVA |
3.2KVA |
12KVA |
| Over-temperature protection |
During the welding process,the maximum temperature protection of the welding head is allowed. |
| No temperature protection |
The preset temperature is not reached within the set time. |
| Over-current protection |
During the welding process,the maximum current protection is allowed to flow. |
| Real-time temperature display |
Curves and Numbers |
| Disordering temperature setting |
100-800 |
| Time setting range |
Preservation:0000ms-9999ms |
| Gradual Ascent 1/2/3:0ms-9999ms |
| Welding 1/2/3:0-9999ms |
| Gradual Descent 1/2/3:0ms-9999ms |
| Cooling:0-9999ms |
| Hold:000-9999ms |
| Temp. setting range |
Consistent welding head temperature:100-800 degrees |
| Start mode |
Primary Start-up and Secondary Start-up |
| Communication Interface |
RS485 |
| I/O interfaces |
40 Specification selection,start,alarm,reset,interrupt,communication,etc. |
| Storable welding specification |
Group of 63 |
| Current Upper and Lower limit value |
Free Setting |
| Transformer cooling mode |
Air-cooled |
Air-cooled |
Water cooling |
| Overall dimensions (power) |
475(L) * 184(W) * 275(H) |
530(L) including protective cover/* 184(W) * 275(H) |
|
| Weight (power) |
10KG |
12 KG |
20KG |
| Output position |
Forward Out |
Forward out |
Rear out |
