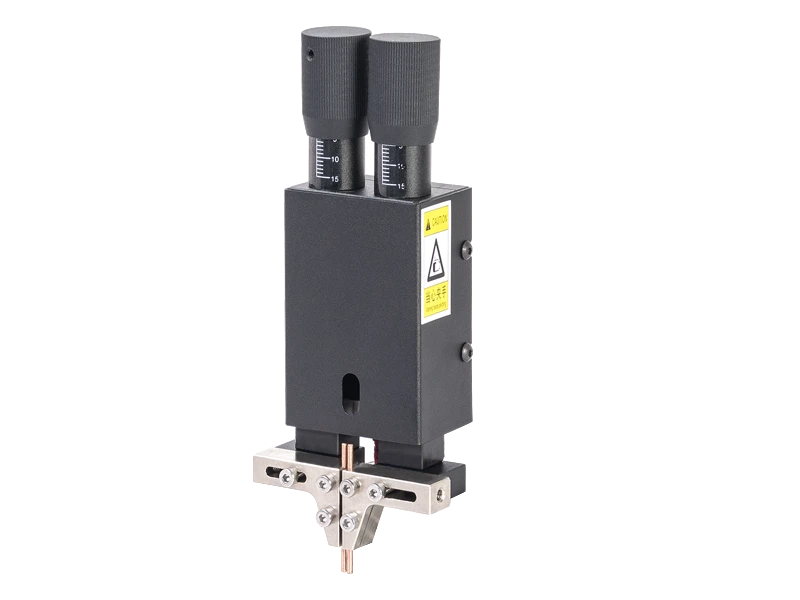

pt s parallel double head welding follow up mechanism

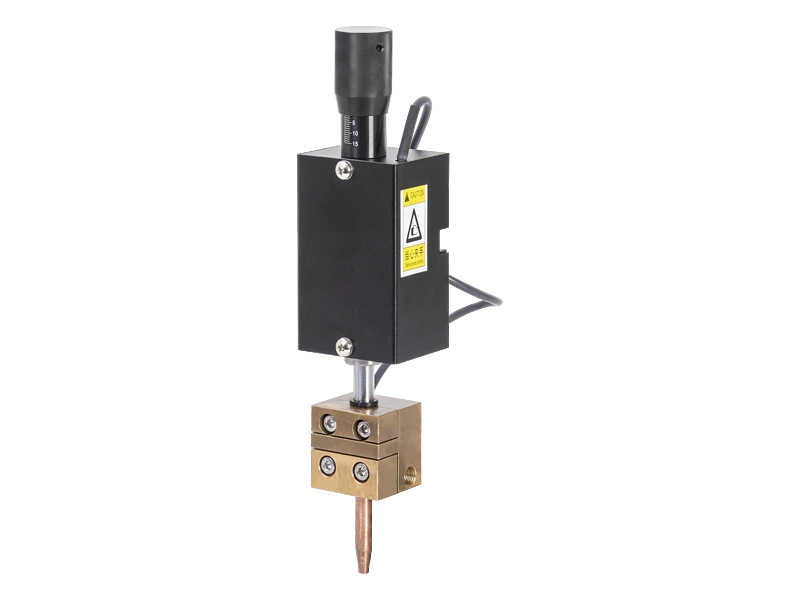

pp m single axis top bottom welding tracking mechanism

PHD-32A Mid Force Pneumatic Weld Head

Simple and practical manual desktop welding mechanism

Get A Quote
Category:
Model PHD – 32 PHD – 50
Common adaptation model PP-M/PPW-M/PT-S
Driving mode Pneumatic
Air pressure 0.2-0.8Mpa
Pressure range 120N (0.2Mpa)-480N (0.8Mpa) 320N(0.2Mpa)-1310N(0.8Mpa)
Moving speed 45-200mm/SEC
Cylinder stroke 0-30mm 0-50mm
Supply voltage of solenoid valve DC24V
Dimensions 150W*320D*515H 150W*350D*635H
Weight 8.2kg 14.5kg
